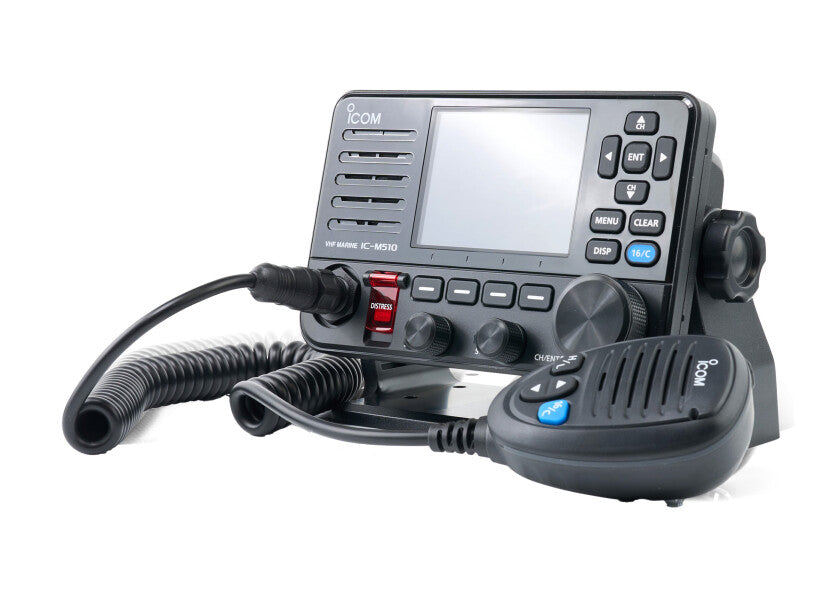

ICOM IC-M510E EVO VHF RADIO
ICOM IC-M510E EVO VHF RADIO - Black / NA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Frequently Asked Questions
Frequently Asked Questions
Add some general information about your delivery and shipping policies.
How long does it take to deliver my order?- Handling time is 0-1 Business Days (Mon-Fri)
- Delivery time 1-2 Business days (Mon-Fri)
How do I track my order?
Once your product has been dispatched, you will receive a tracking number that will allow you to follow it until it is delivered to you.
What’s your return policy?
All returns must be made within Twenty one (21) days after receiving your item. We cannot accept returns after 21 days.
Do you deliver across the world?
We currently deliver to the Republic of Ireland.
What payment method was received?
We accept PayPal, Visa and Mastercard.
Don't hesitate to contact us If you have any Questions or Enquiries
Contact Us:
Email: info@mchalecaravans.ie
The IC-M510E EVO VHF marine radio features an integrated GPS receiver and an impressive range of functions. A number of functions can be controlled via your smartphone using a free app, and the internal speaker provides excellent sound quality.
Product data
- EAN 4909723166665
- Description ICOM - IC-M510E-EVO VHF marine radio
- Radio Type Fixed installation
- DSC Yes
- ATIS Yes
- GPS Yes
- AIS Transmitter No
- AIS receiver No
- NMEA0183 Yes
- NMEA2000 Yes
- Intercom Yes
- Black Box No
- Connectable to second device Yes
- Connector PL Socket
- Backlight Multi-colour
- MMSI number input By customer
- ATIS number input By customer
- Installation width 156 mm
- Installation height 91 mm
- Transmission power 1 W, 25 W
- Programmable Yes
- Operating voltage 12 V
The IC-M510E EVO VHF marine radio features an integrated GPS receiver and an impressive range of functions. A number of functions can be controlled via your smartphone using a free app, and the internal speaker provides excellent sound quality.
Colour display with wide viewing angle
The display provides a viewing angle of up to 180° and impresses with high-resolution characters and function icons in colour. Night mode ensures good readability in low light conditions.
Smartphone pairing via WiFi
Control a number of functions with your smartphone thanks to built-in WiFi connectivity. Up to three smart devices can be used as a wireless microphone. Intercom function between your smart device and the radio is also available.
To use the function, all you need to do is download the free RS-M500 app (iOS/Android).
Integrated GPS receiver
The integrated GPS receiver enables the radio to send an emergency call including the current, exact coordinates.
Navigation function
The navigation function guides you to a specified waypoint or AIS targets. You can save up to 100 destinations as waypoints.
Clear audio output
The IC-M510E's internal speaker enhances the received audio and provides excellent sound quality.
Integrated NMEA2000 interface
Exchange data quickly and easily, e.g. GPS, via the NMEA2000 network using the NMEA2000 interface integrated in the Icom IC-M510E EVO (connection via a Micro-C connector - male). GPS data from an external NMEA2000 receiver can be used for the IC-M510E EVO, for example.
Further features
- Elegant design and easy installation
- Active noise reduction
- NMEA2000, NMEA 0183 and WiFi connectivity
- Integrated GPS receiver
- Waterproof to IP68 standards
- Connect an external speaker and second control unit
- Speaker microphone can also be optionally connected on the rear side
- Automatic foghorn function
Technical Data
| Power supply | 10.8 - 15.6 V DC |
| power consumption (amps) | 5.0 A |
| Temperature range (operational) | -20 to +60 °C |
| Frequencies | 156.025-161.425 MHz (TX) 156.300 - 161.925 MHz (RX) 156.525 MHz (DSC) 161.975, 162.025 MHZ (AIS) |
| Impedance | 50 O |
| output power | 25 W, 1 W |
| Audio output | 15 W |
| DSC | Yes |
| ATIS | Yes |
| WiFi | Yes |
| GPS | Yes |
| AIS Receiver | No |
| Waterproof rating | IP68 |
| Dimensions (WxHxD) | 175 x 110 x 53 mm |
| Weight | 750 g |
ICOM IC-M510E EVO VHF RADIO
Description
Description
The IC-M510E EVO VHF marine radio features an integrated GPS receiver and an impressive range of functions. A number of functions can be controlled via your smartphone using a free app, and the internal speaker provides excellent sound quality.
Product data
- EAN 4909723166665
- Description ICOM - IC-M510E-EVO VHF marine radio
- Radio Type Fixed installation
- DSC Yes
- ATIS Yes
- GPS Yes
- AIS Transmitter No
- AIS receiver No
- NMEA0183 Yes
- NMEA2000 Yes
- Intercom Yes
- Black Box No
- Connectable to second device Yes
- Connector PL Socket
- Backlight Multi-colour
- MMSI number input By customer
- ATIS number input By customer
- Installation width 156 mm
- Installation height 91 mm
- Transmission power 1 W, 25 W
- Programmable Yes
- Operating voltage 12 V
The IC-M510E EVO VHF marine radio features an integrated GPS receiver and an impressive range of functions. A number of functions can be controlled via your smartphone using a free app, and the internal speaker provides excellent sound quality.
Colour display with wide viewing angle
The display provides a viewing angle of up to 180° and impresses with high-resolution characters and function icons in colour. Night mode ensures good readability in low light conditions.
Smartphone pairing via WiFi
Control a number of functions with your smartphone thanks to built-in WiFi connectivity. Up to three smart devices can be used as a wireless microphone. Intercom function between your smart device and the radio is also available.
To use the function, all you need to do is download the free RS-M500 app (iOS/Android).
Integrated GPS receiver
The integrated GPS receiver enables the radio to send an emergency call including the current, exact coordinates.
Navigation function
The navigation function guides you to a specified waypoint or AIS targets. You can save up to 100 destinations as waypoints.
Clear audio output
The IC-M510E's internal speaker enhances the received audio and provides excellent sound quality.
Integrated NMEA2000 interface
Exchange data quickly and easily, e.g. GPS, via the NMEA2000 network using the NMEA2000 interface integrated in the Icom IC-M510E EVO (connection via a Micro-C connector - male). GPS data from an external NMEA2000 receiver can be used for the IC-M510E EVO, for example.
Further features
- Elegant design and easy installation
- Active noise reduction
- NMEA2000, NMEA 0183 and WiFi connectivity
- Integrated GPS receiver
- Waterproof to IP68 standards
- Connect an external speaker and second control unit
- Speaker microphone can also be optionally connected on the rear side
- Automatic foghorn function
Technical Data
| Power supply | 10.8 - 15.6 V DC |
| power consumption (amps) | 5.0 A |
| Temperature range (operational) | -20 to +60 °C |
| Frequencies | 156.025-161.425 MHz (TX) 156.300 - 161.925 MHz (RX) 156.525 MHz (DSC) 161.975, 162.025 MHZ (AIS) |
| Impedance | 50 O |
| output power | 25 W, 1 W |
| Audio output | 15 W |
| DSC | Yes |
| ATIS | Yes |
| WiFi | Yes |
| GPS | Yes |
| AIS Receiver | No |
| Waterproof rating | IP68 |
| Dimensions (WxHxD) | 175 x 110 x 53 mm |
| Weight | 750 g |
