Description

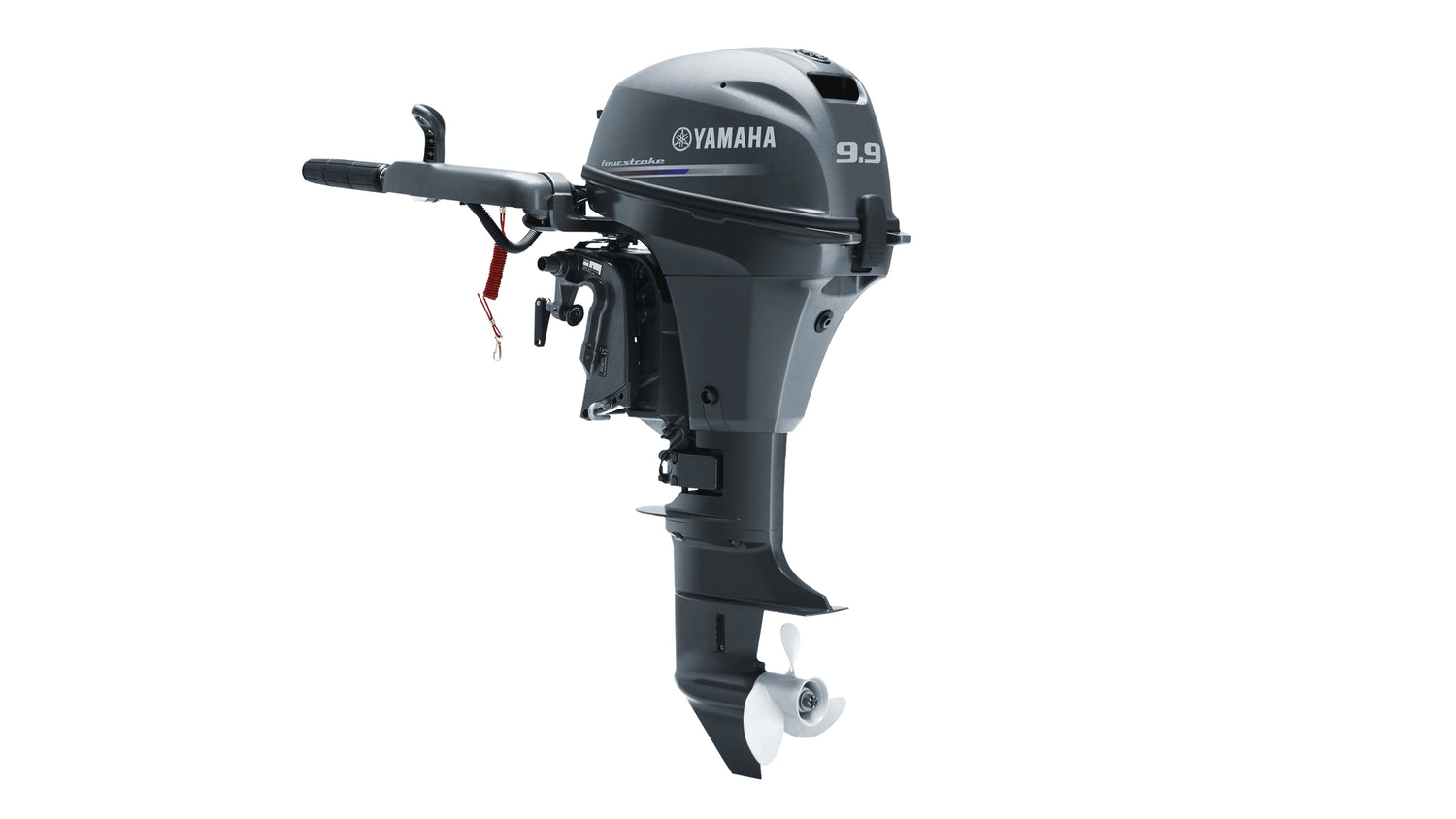

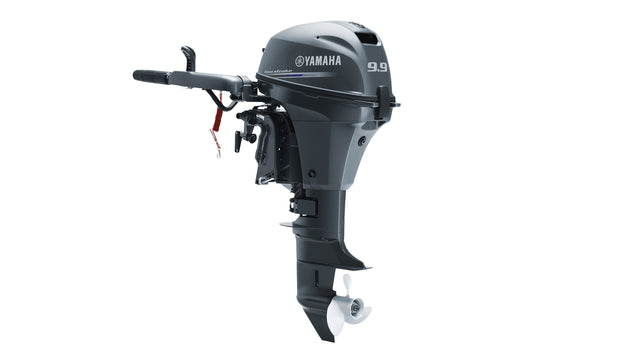

F9.9JMHL
Our lightweight heavyweight – real portable power!
Discover the joys of whisper-quiet operation and superb fuel economy, blended with our smooth, reliable 4-stroke power. Yamaha’s CDI Ignition System means reliable, first-time start-up, so combined with the twist-grip throttle and F-N-R gear system, easy, safe handling is the result.
This lightweight engine has many talents that make it ideal for tender duties, fishing or family fun. Of course, if you use your boat as a reliable work partner, then the 8hp is the perfect match.
At a glance
- Large comfortable-to-use carry handle
- Lighting coil fitted as standard
- Fresh Water Flushing system
- Shallow Water Drive for cruising close inshore
- Over-rev limiter
- Start-in-gear’ protection system
- Audible warning of low oil pressure
- Easy-fold tiller design for storage & portability
- Ergonomic shift lever on the tiller handle
- Compact and efficient engine design
- Remarkable power and impressive torque
- Extra resting pad for convenient vertical storage
Technical Information
- Engine type
- 4-stroke
- Displacement
- 212 cm?
- No. of cylinders/configuration
- 2/In-line, SOHC
- Bore x stroke
- 56.0 mm x 43.0 mm
- Prop shaft output at mid range
- 7.3 / 5,500 rpm
- Full throttle operating range
- 5,000 – 6,000 rpm
- Lubrication system
- Wet sump
- Fuel Induction System
- 1-Carb
- Ignition / advance system
- CDI
- Starter system
- Manual (MH), Electric (E)
- Gear ratio
- 2.08 (27:13)
- Recommended boat transom height
- S431L:558mm
- Fuel tank capacity
- separate, 12litres
- Oil pan capacity
- 0.8litres
- Weight without propeller
- 40kg – 43kg
